Trade Information:
Model: FP
MOQ: 1 unit
Lead time: 20 days
Port Of Loading: Ningbo/Shanghai, China
Product Information:
Flexible conveyor is a useful product where movability, manueverability and flexibility is necessary to transport goods. Flexible conveyor can be wheeled over to wherever it is needed, expanded and easily positioned into straight lines or around bends to convey goods exactly where they need to be. When finished, it can simply be contracted and rolled away to a different area or stored for the next time it's needed.
Product Features:
1, Convenient Movability: based on lightweight design, wherever the flexible roller conveyor is needed, there only need very few staffs to move and locate. The conveyor can be adjusted to multiple angles to meet different working environments.
2, Efficiency: based on stable motor power which is installed under every conveyor unit, the different units of the whole conveyor can conveys the goods synergistically and effectively.
3, Flexibility: easy operation of extension and retraction can help people to convey goods between different working platform effectively.

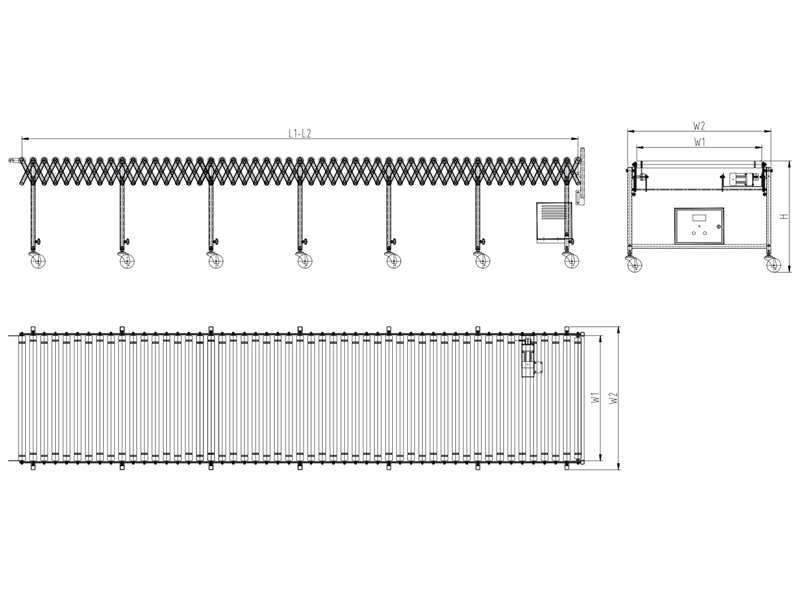

Model | Stage | Extended Length | Contracted Length | Working Width | Frame Width | Adjustable Height |
L1 | L2 | W1 | W2 | H | ||
FP02 | 2 | 2200 | 970 | 500-1000mm | W1+130mm | 600-1200mm |
FP03 | 3 | 3200 | 1370 | 500-1000mm | W1+130mm | 600-1200mm |
FP04 | 4 | 4200 | 1770 | 500-1000mm | W1+130mm | 600-1200mm |
FP05 | 5 | 5200 | 2170 | 500-1000mm | W1+130mm | 600-1200mm |
FP06 | 6 | 6200 | 2570 | 500-1000mm | W1+130mm | 600-1200mm |
FP07 | 7 | 7200 | 2970 | 500-1000mm | W1+130mm | 600-1200mm |
FP08 | 8 | 8200 | 3370 | 500-1000mm | W1+130mm | 600-1200mm |
General Specificatoins: | |
Load Capacity: | 40kg/m(Default Weight), 50kg/m(Optional Weight) When Extended. |
Conveyor Roller: | Φ50x1.5mm, Carbon Steel, Zinc Plated,Grooved Roller. |
O Belt | Φ5mm PU Belt, Endless. |
Motor: | One Motor/Stage, 90W/Motor. |
Power: | 380V, 3phase, 50hz(Default). |
Transport: | Forward/Reverse. |
Flexible Plate: | 4mm Thickness. Carbon Steel, Zinc Plated(Default), Powder Coated. |
Support Leg: | Carbon Steel, Powder Coated. 30x30mm Square Tube. |
Castor: | Φ125mm. Lockable Castor: Every Other Pair(Default). |
Conveyor Head: | With Handle Fixed. |
Conveyor Tail: | With Connecting Hook Fixed. |
