Trade Information:
Code: CPH
MOQ: 1 unit
Lead time: 15-30 days
Port Of Loading:Ningbo/Shanghai, China
Features:
1, Various pulleys diameters, thickness and shaft diameters are available.
2, Different shaft installations can be chosen according to your requirements.
3, The pulley can be produced as flat surface and drum surface.
4, We can supply the pulley without rubber lagging, if you want the pulley has great traction, the vulcanized rubber lagging can be produced too.

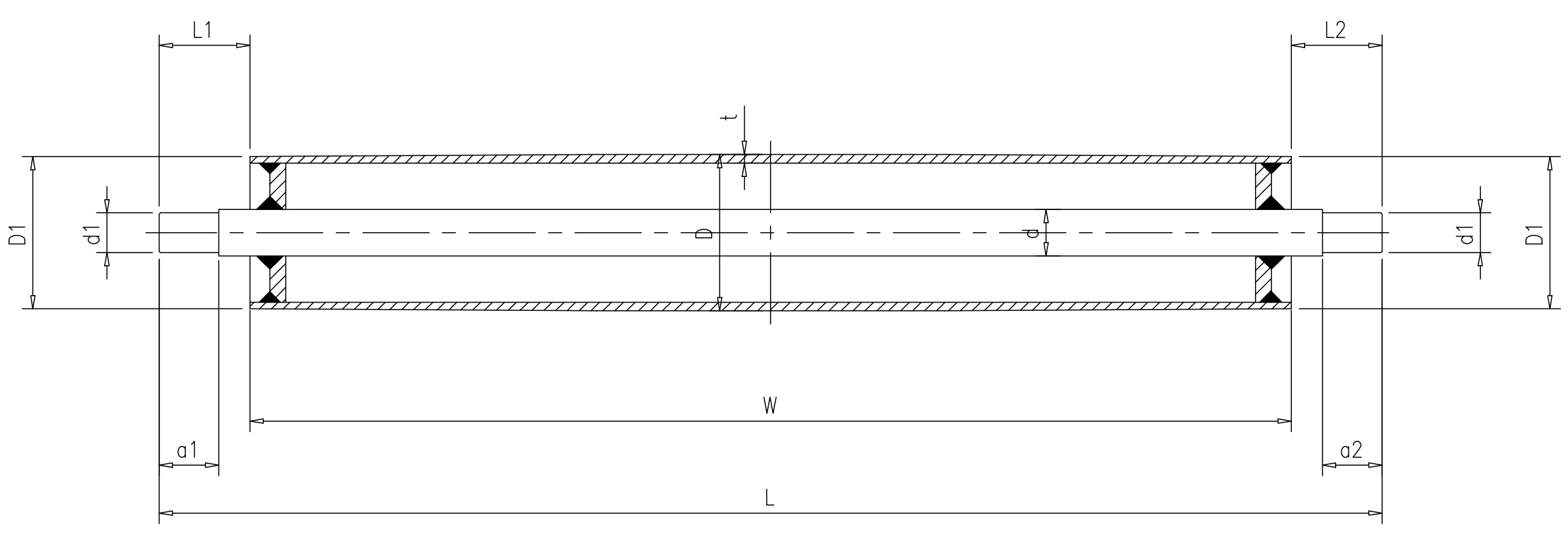

The Conventional Standard | |||||
D | t | d | Bearing Model | D1 | W |
Φ51 | (3.0) | Φ20 | 6204 | / | 70-1300 |
Φ59 | (4.5) | Φ25 | 6205 | Φ57.6 | 70-1800 |
Φ75 | (4.5) | Φ25 | 6005 | Φ73.6 | 70-1800 |
Φ30 | 6008 | ||||
Φ79 | (4.5) | Φ25 | 6005 | Φ77.6 | 70-1800 |
Φ30 | 6306 | ||||
Φ87 | (4.5) | Φ25 | 6205 | Φ85.6 | 70-1800 |
Φ30 | 6307 | ||||
Φ100 | (6.0) | Φ30 | 6306 | Φ98 | 70-1800 |
Φ112 | (6.0) | Φ30 | 6306 | Φ110 | 70-1800 |
Φ35 | 6307 | ||||
Φ119 | (6.0) | Φ40 | 6308 | Φ117 | 70-1800 |
