Introduction:
Trade Information:
Code: CPG
MOQ: 1 unit
Lead time: 15-30 days
Port Of Loading：Ningbo/Shanghai, China
Features:
1, Various pulleys diameters, thickness and shaft diameters are available.
2, Different shaft installations can be chosen according to your requirements.
3, The pulley can be produced as flat surface and drum surface.
4, We can supply the pulley without rubber lagging, if you want the pulley has great traction, the vulcanized rubber lagging can be produced too.

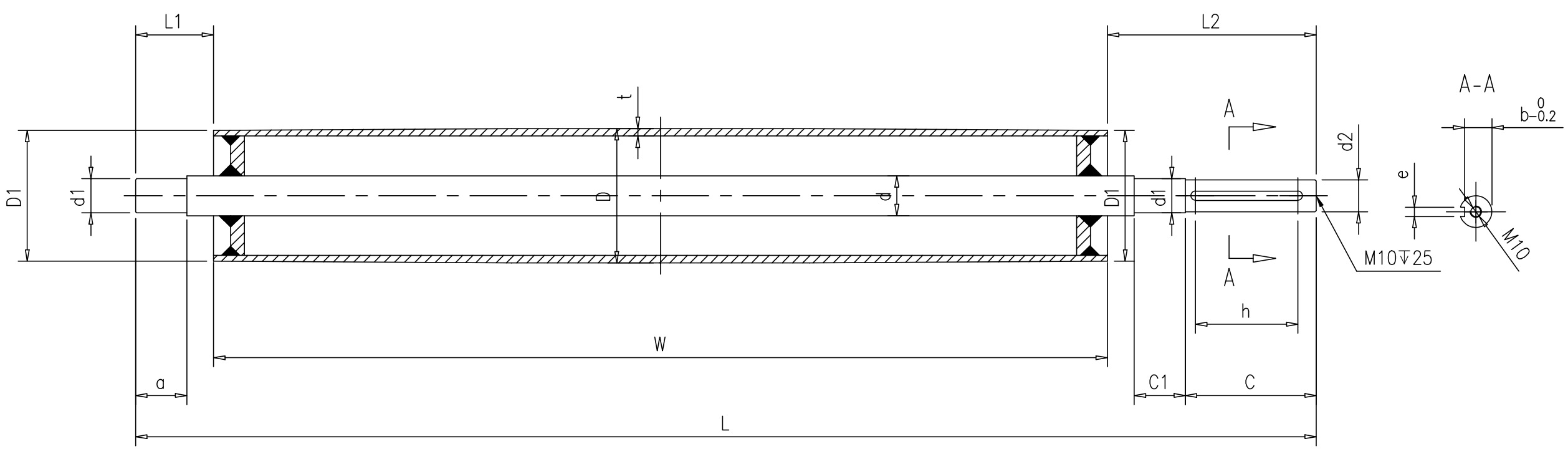

| The Conventional Standard | d1 | The Size Range | |||||
| D | t | d1 | D1 | W | L | L1/L2 | |
| Φ59 | （4.5） | Φ25 | Φ57.6 | Φ20 | 250-1400 | ≤1600 | ≤280 |
| Φ75 | （4.5） | Φ30 | Φ73.6 | Φ25 | 250-1400 | ≤1600 | ≤280 |
| / | Φ35 | ≤185 | |||||
| Φ87 | （4.5） | Φ30 | Φ85.6 | Φ25 | 250-1400 | ≤1600 | ≤280 |
| / | Φ35 | ≤185 | |||||
| Φ100 | （6.0） | Φ30 | Φ98 | Φ25 | 250-1400 | ≤1600 | ≤280 |
| Φ35 | ≤185 | ||||||
| Φ112 | （6.0） | / | Φ110 | Φ30 | 250-1400 | ≤1600 | ≤280 |
| Φ35 | Φ40 | ≤185 | |||||
| Φ119 | （6.0） | Φ35 | Φ117 | Φ40 | 250-1400 | ≤1600 | ≤185 |
| Φ130 | （6.5） | Φ35 | Φ127 | Φ40 | 70-1800 | ≤2400 | ≤300 |
| Φ156 | （6.5） | Φ35 | Φ153 | Φ40 | 70-1800 | ≤2400 | ≤300 |
| Φ176 | （6.0） | Φ40 | Φ173 | Φ45 | 70-1800 | ≤2400 | ≤300 |
| Φ200 | （6.5） | Φ35 | Φ196 | Φ50/55 | 70-1800 | ≤2400 | ≤300 |
