Trade Information:
Code: CSRM
MOQ: 1 unit
Lead time: 15-30 days
Port Of Loading:Ningbo/Shanghai, China
Features:

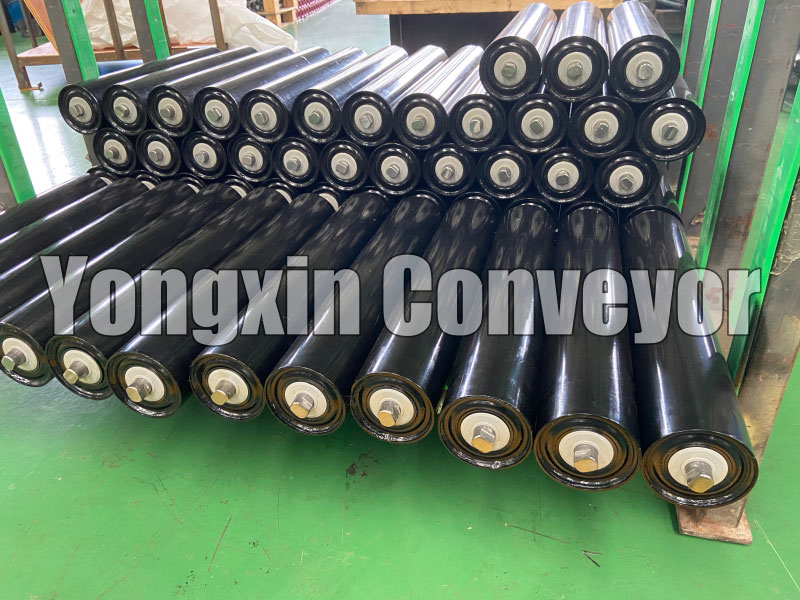

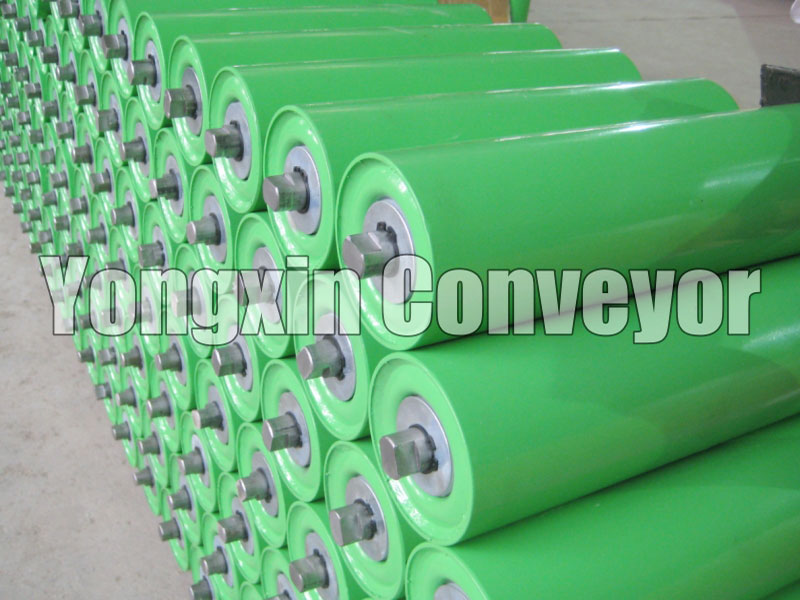

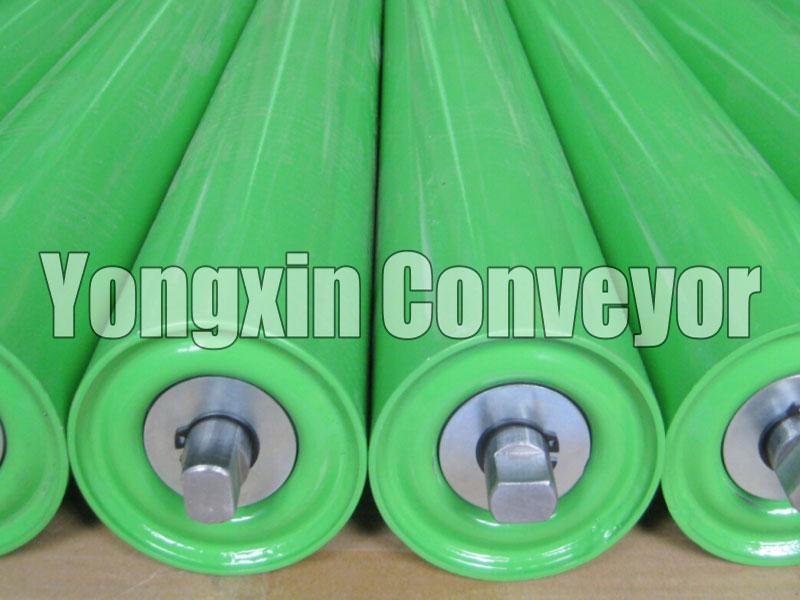

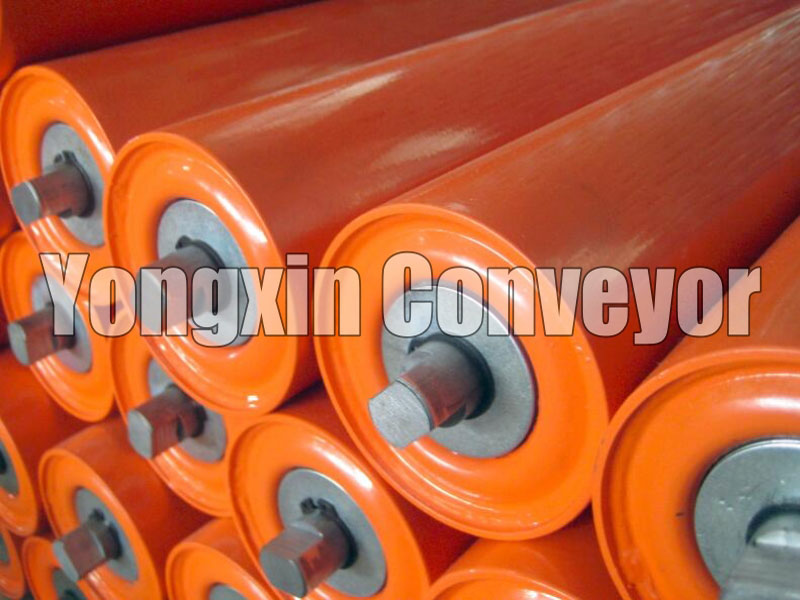

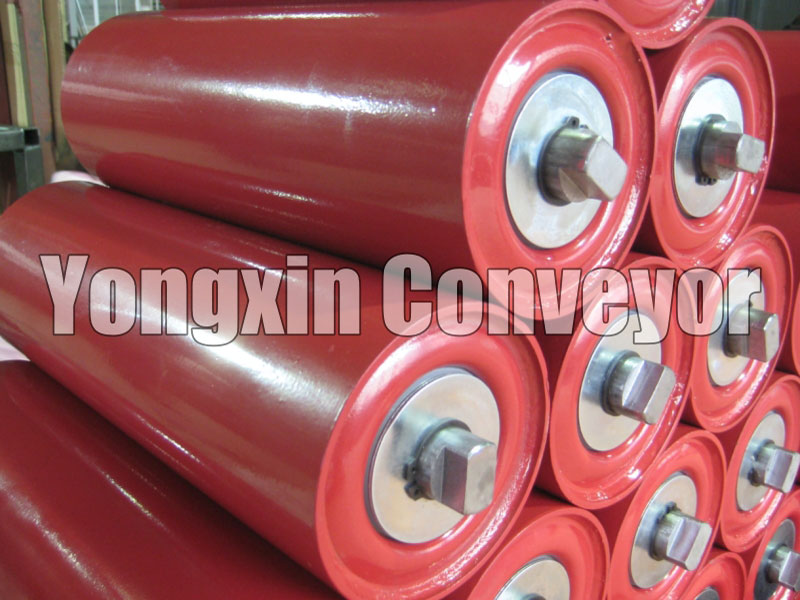

1, The carrying idlers are widely used in bulk material equipment applications such like cement plant, quarry, port etc.
2, Custom sizes can be designed and produced. Our idlers fit for two roll and three roll troughing idler sets.
3, Easily mounted and replaced.

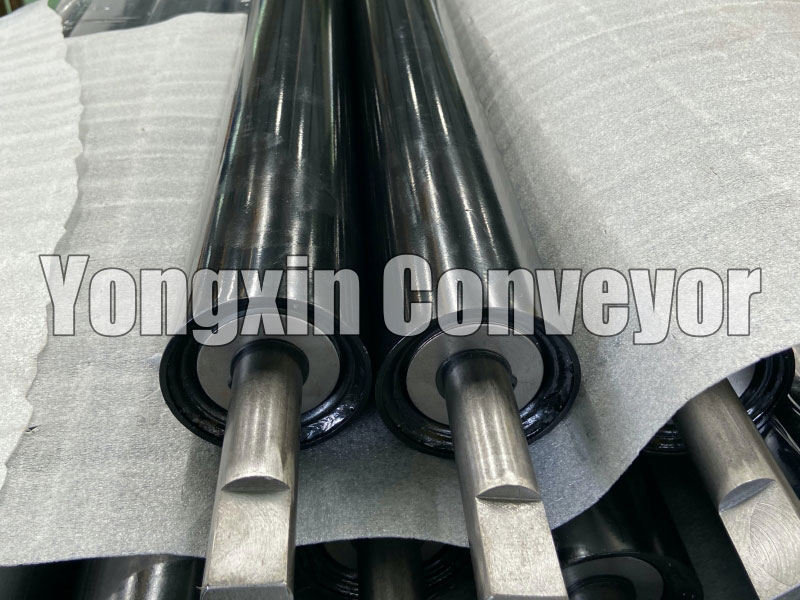

4, The mounted methods include milled flat, milled grooved, female threaded.
5, The tube surface treatment is powered coated, zinc plated.

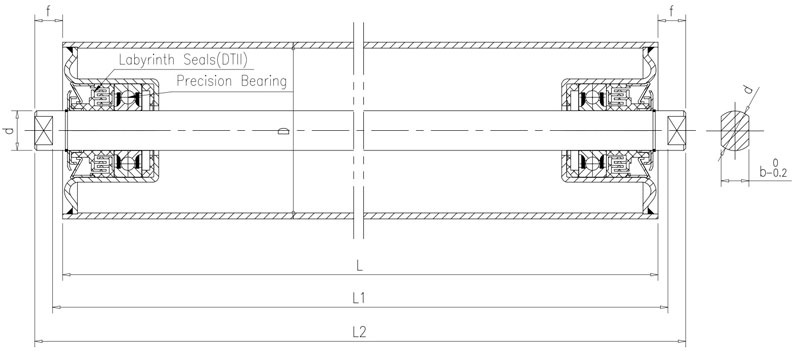

D | d | L | b | f | Bearing No. | Net Weight |
mm | mm | mm | mm | mm | Kg | |
89 | 20 | 200 | 14 | 14 | 6204 | 2.79 |
250 | 2.98 | |||||
315 | 3.58 | |||||
465 | 5.24 | |||||
600 | 6.48 | |||||
750 | 7.87 | |||||
25 | 950 | 6205 | 9.72 |
